Collaborative Robot FANUC CR-35iA
Dettagli robot

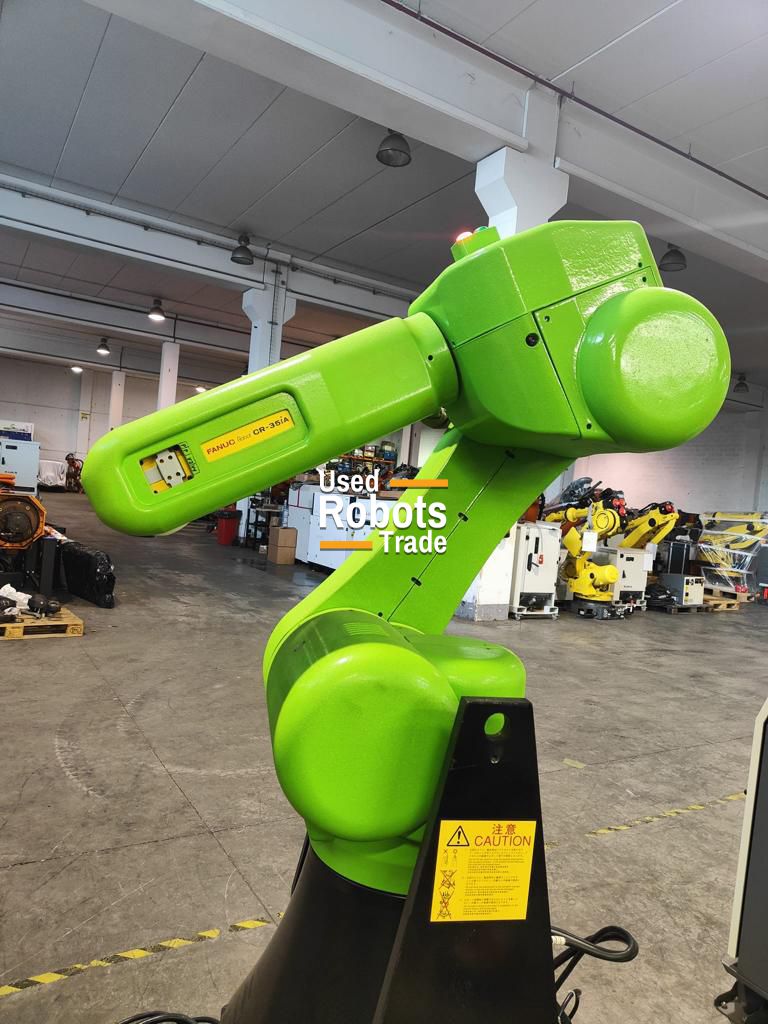

Collaborative robot CR-35iA is recognised by its load capacity of 35 kg, which makes it ideal for handling heavy items in any position, reach of 1813 mm, and a system of integrated sensors that allows the robot to stop more robustly and safely in the process of easy production programming; it is certified in safety.

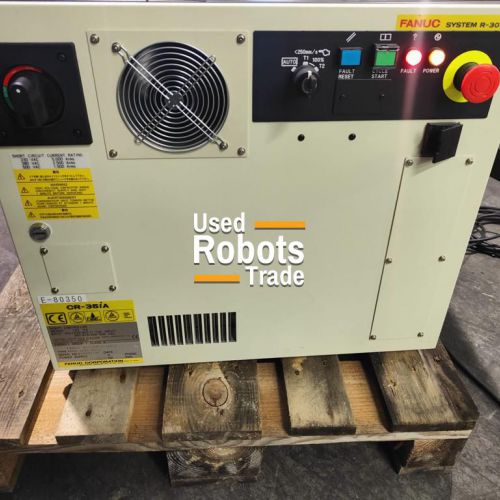

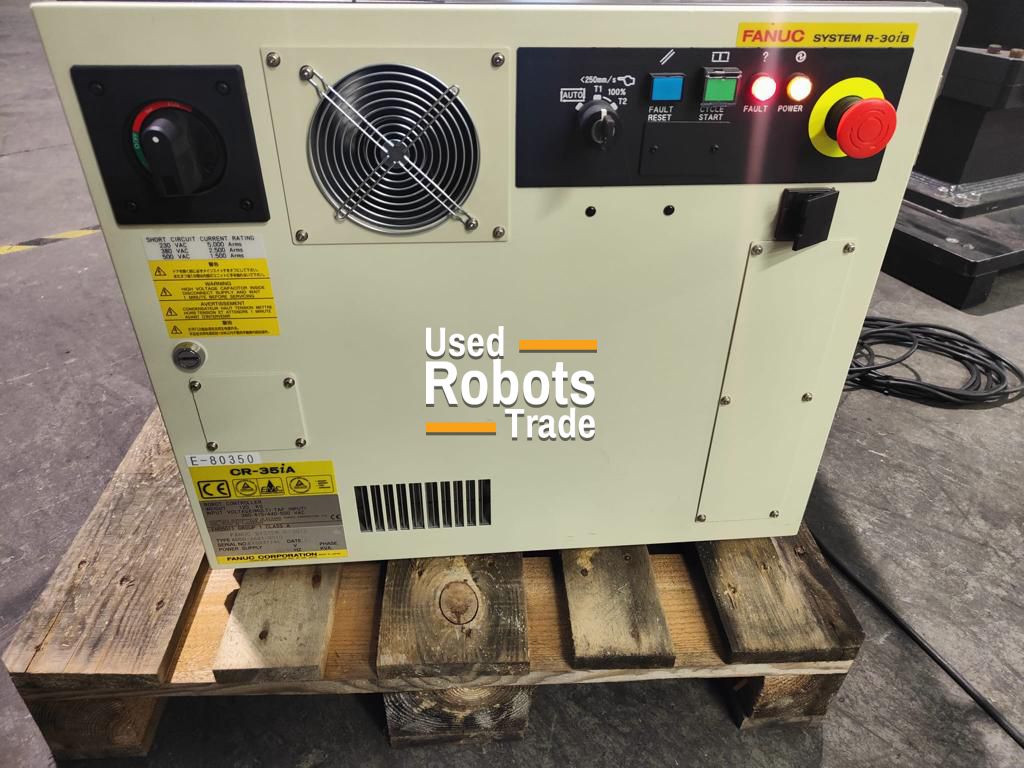

The R30iA controller allows quick amplifier change, enhanced boot time, easy to connection with different I/O.
Applicazioni Robot
- Carico e scarico dei pezzi
- Lavorazione
- Manipolazione di parti
- Pallettizzazione
- Misurazione
- Assemblaggio di parti
Main Specifications
Maximum load of the robot: 35 kg
Number of axles: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.04mm (based on ISO9283)
Controller: R30iB
Movement range (°)
Axis 1: 370 °
Axis 2: 165 °
Axis 3: 258 °
Axis 4: 400 °
Axis 5: 220 °
Axis 6: 900 °
Maximum speed (° / s)
max. Cartesian speed 500 mm / sec (750 mm / sec when monitoring safety)
