TITAN KUKA KR 1000 krc4

Dettagli robot

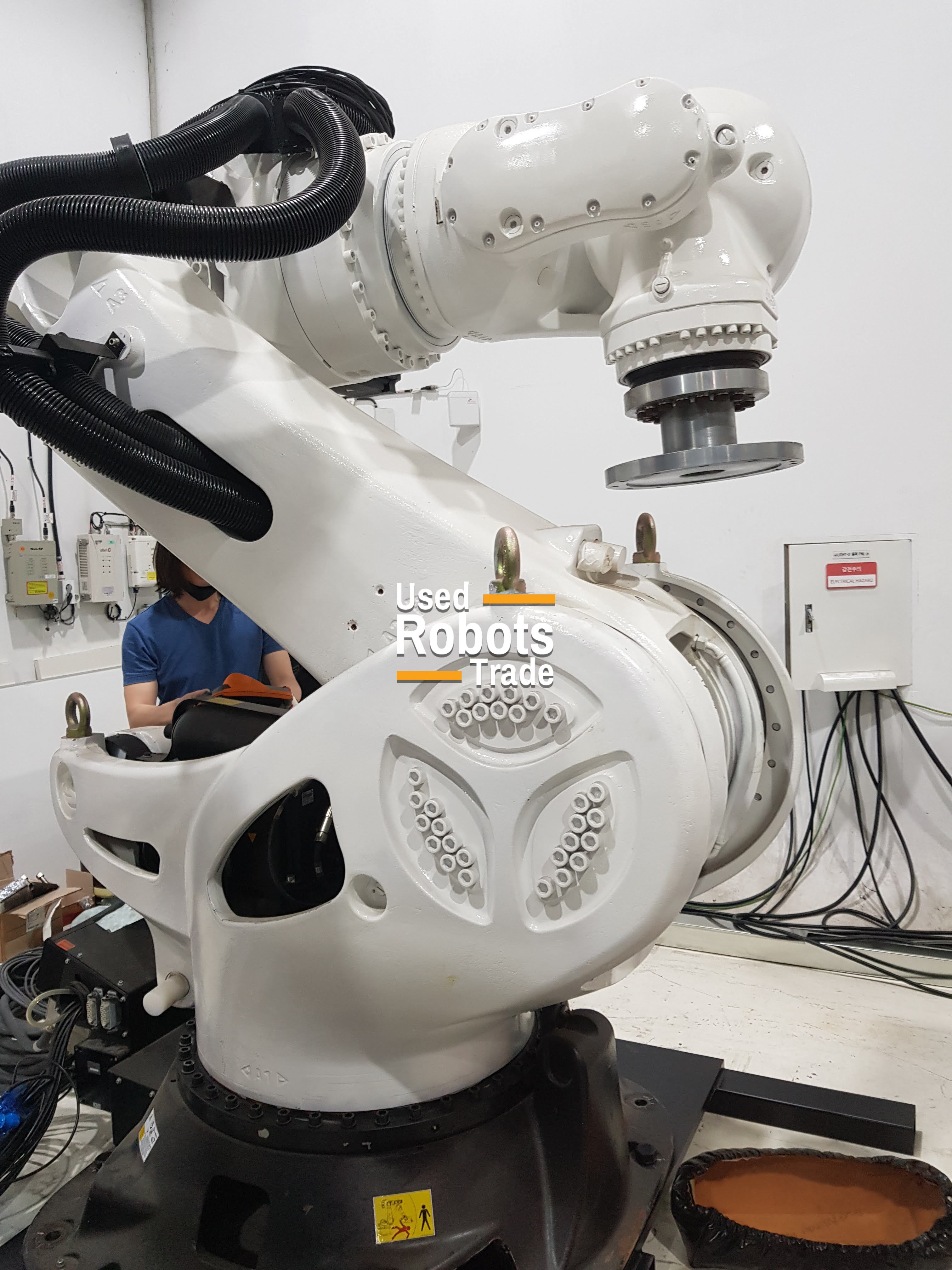

The industrial robot KR 1000 titan is designed for handling heavy loads safely and accurately, improves production and reduces costs, in combination with other linear axes you can increase your operating space effectively. It is a robot of 6 axes, a capacity of load of 1000 kg and a scope of 3202 mm, degree of protection IP65 and position of floor mount.

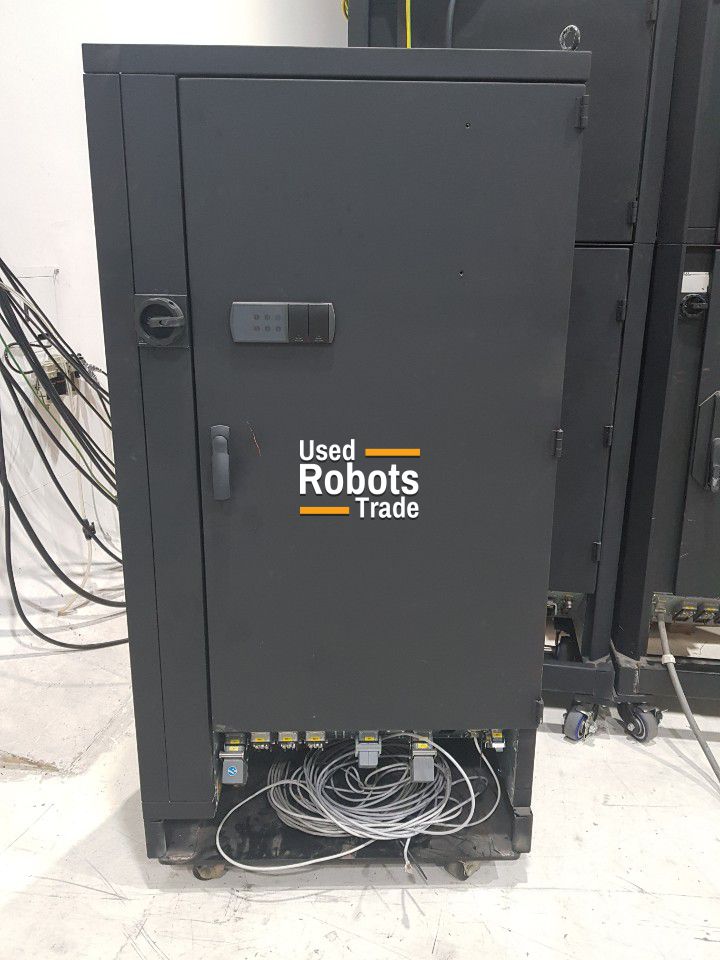

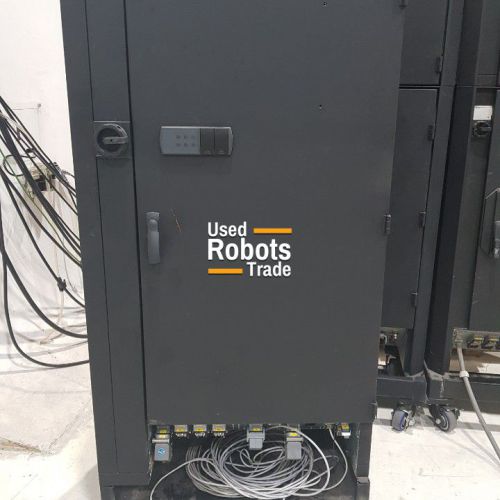

Newest Kuka controller: krc4 controller

Applicazioni Robot

• Stampaggio
• Carico e scarico dei pezzi
• Lavorazione
• Manipolazione di parti
• Pallettizzazione
• Misurazione
• Incollaggio - Incollaggio adesivo
• Assemblaggio di parti

Main specifications

Maximum Load of Robot: 1000 Kg
Number of axis: 6
Maximum horizontal reach: 3202 mm
Repeatability: ±0,1 mm
Controller: KR C4

Motion range (°)

Axis 1: ±150°
Axis 2: +17,5°to -130°
Axis 3: +145° to -110°
Axis 4: ±350°
Axis 5: ±118°
Axis 6: ±350°
